Was ist Plant iT?

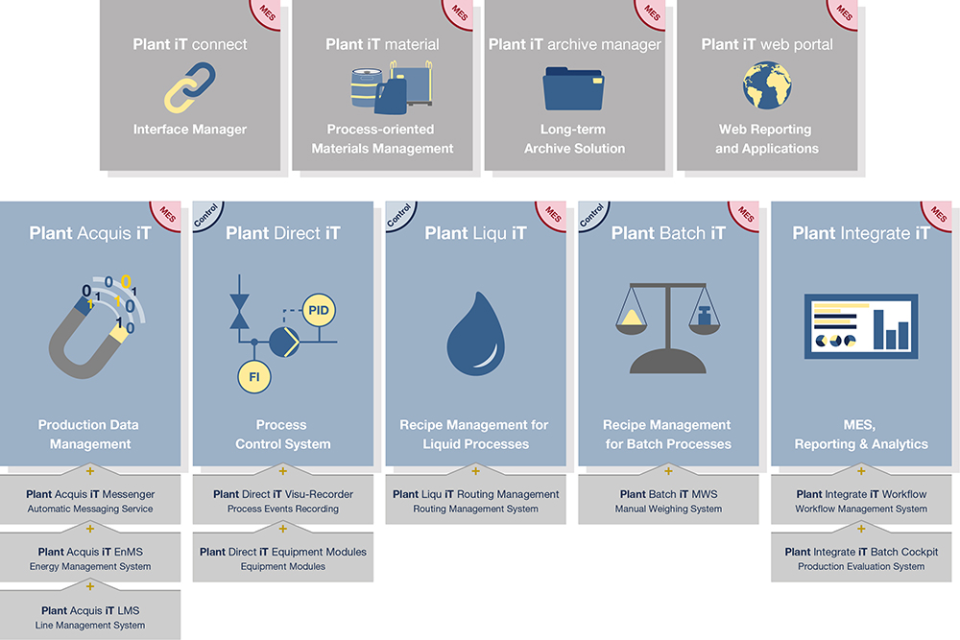

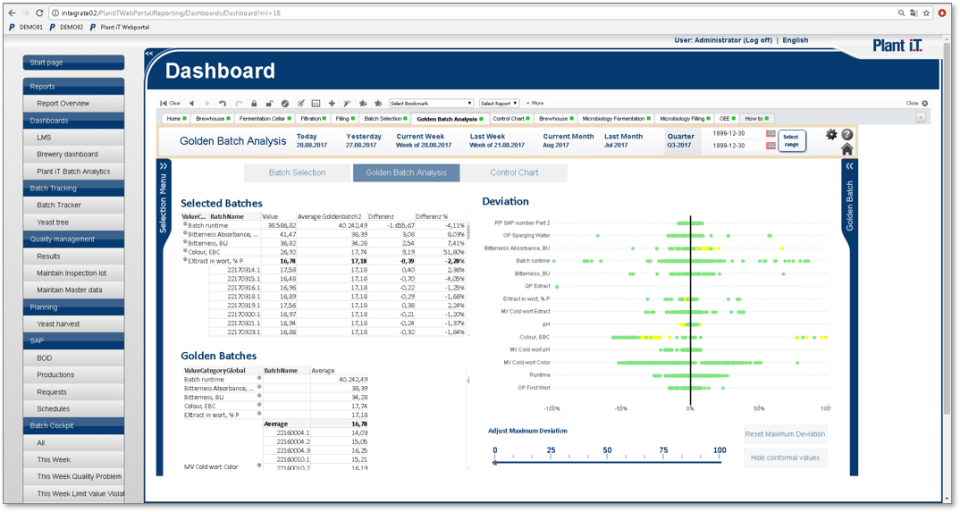

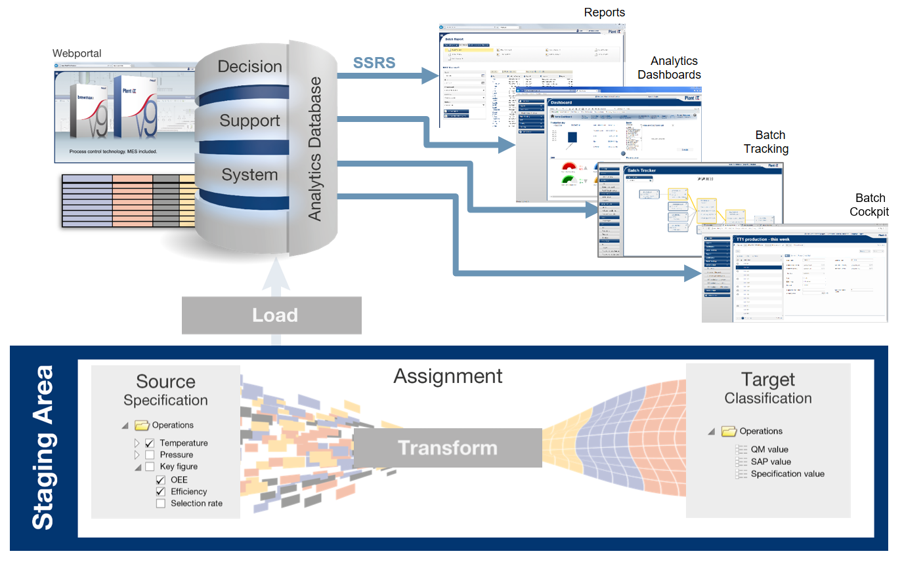

Interactive analytics dashboards - Production Workflow - Specifications - Material Management - Tracking & Tracing - Warehouse, Stocks and Inventories - Order and Batch management - ISA S88 Recipes - Replay of actual process execution in Visu-Recorder - Production: from material intake through process to the warehouse - Batch Cockpit - Functions for maintenance and servicing - Storage of large data volumes for long-term investigations - Automatic Resource Allocation
Plant iT – Details
Plant iT – Preisübersicht
Plant iT ist verfügbar ab 2.200,00 $/einmalig. Plant iT bietet keine Gratisversion und keine kostenlose Testversion. Weitere Preisinformationen für Plant iT findest du unten.
Plant iT Funktionen
Plant iT – Nutzerbewertungen
Zeigt 5 von 10 Nutzerbewertungen
Bewertet am 4.3.2019
Kommentare: We are positive on this experience. It gives great traceability as well as routing/automation
Vorteile: Well integrated process software. It runs brewery production very well and is a market leader
Nachteile: The complexity/flexibility is an asset and as we have grown increasingly dependent on it for daily operations has spurred on staff training needs. In short, powerful and requires intelligent support
Bewertet am 1.3.2019
ProLeit Plant It Review - Brewmaxx
Add-on profiles. Most of the system works off prebuilt object add-on profiles. When programmed correctly most of the field objects can be easily configured from the HMI. Once set up, changes can be made quickly to objects, recipes, and batches.
PLC to PLC communication. ProLeit makes activation of objects in multiple PLCs easy using their object control matrix(OCM) Each matrix can contain automation objects from different PLCs that are easily activated from a single activation with minimal PLC-PLC communication.
Historical data. The Order Archive records every batch that occurs. Each step is recorded with all parameters. There is a trend view for each batch. Each message for the batch is recorded. This makes optimizations fairly straightforward
There is a “playback function” where you can watch what happened on the HMI during a production run. There is also an event log that shows each button click and parameter change that occurs. This makes root cause analysis fairly straightforward. Visualizations. It is extremely easy to build visualizations Support. We have a 24/7 SLA with a 6-month maintenance report. Both have been helpful in spotting configuration issues.
Nachteile: Learning curve. The software has a steep learning curve for engineers. There are multiple layers that need to be understood before an employee can be functional at configuring the system. I highly suggest having a dedicated person(s) to managing the software. PLC Cycle Time. The add-on profiles make the PLC cycle time 200-300ms. We have 2 Rockwell PLCs that when we added to our tank farm the cycle time increased to 500-600ms. This causes some of the sequence timers to be off by 10-15%. We are going to correct this by upgrading our PLCs. Make sure the PLC has enough processing power for any major additions down the road. This does not seem to be an issue for Siemens PLCs.
Bewertet am 1.3.2019
Plant iT with Brewmaxx for Breweries
Kommentare: We went from manual processes to automated processes and this transition was made easier by having the competent experienced people from Proleit involved throughout the entire process. The Plant iT program is extremely robust and runs day in and day out without an issue. Overall Plant iT continues to be a good experience for us.
Vorteile: Proleit knows how to program breweries. Proleit helped us make the move from no automation to fully automated manufacturing successfully. They applied their vast knowledge throughout the entire process to make a versatile yet robust program for controlling our brewery. There is a tremendous amount of data collected by the Plant iT program which helps us make better process decisions all the time. The program is extremely robust and we do not have to worry about it not working.
Nachteile: The main program worked from day one however there are a tremendous amount of settings and features in the program that can be tweaked. It has taken quite a while to learn how to apply them when needed for our processes and data collection.
Bewertet am 3.6.2019
Kommentare: Don't use it anymore
Vorteile: Integration with other Proleit applications, older version worked very well.
Introducting and configuration.
It takes a lot of time to configure this product (new version). Not realy designed for BatchIT
Bewertet am 15.5.2019
Plant iT Review
Kommentare: We are running a very sophisticated beer brewing operation that this program runs and controls associated with the start to finish brewing process. We use the entire program process many times a day and have been using it for almost 6 years with very little issues.
Vorteile: The graphic displays and the ease of usability is pretty simple once you get used to it. It is very straightforward and powerful to fulfill the tasks that we need it to accomplish
Nachteile: We have learned over time how to actually go in and modify programs. It is pretty easy once you get into it but we need to send someone to Plant iT school to really understand the inter workings of the processes. That being said we have very little problems with the programs and it is a great tool for our process.
